Layout

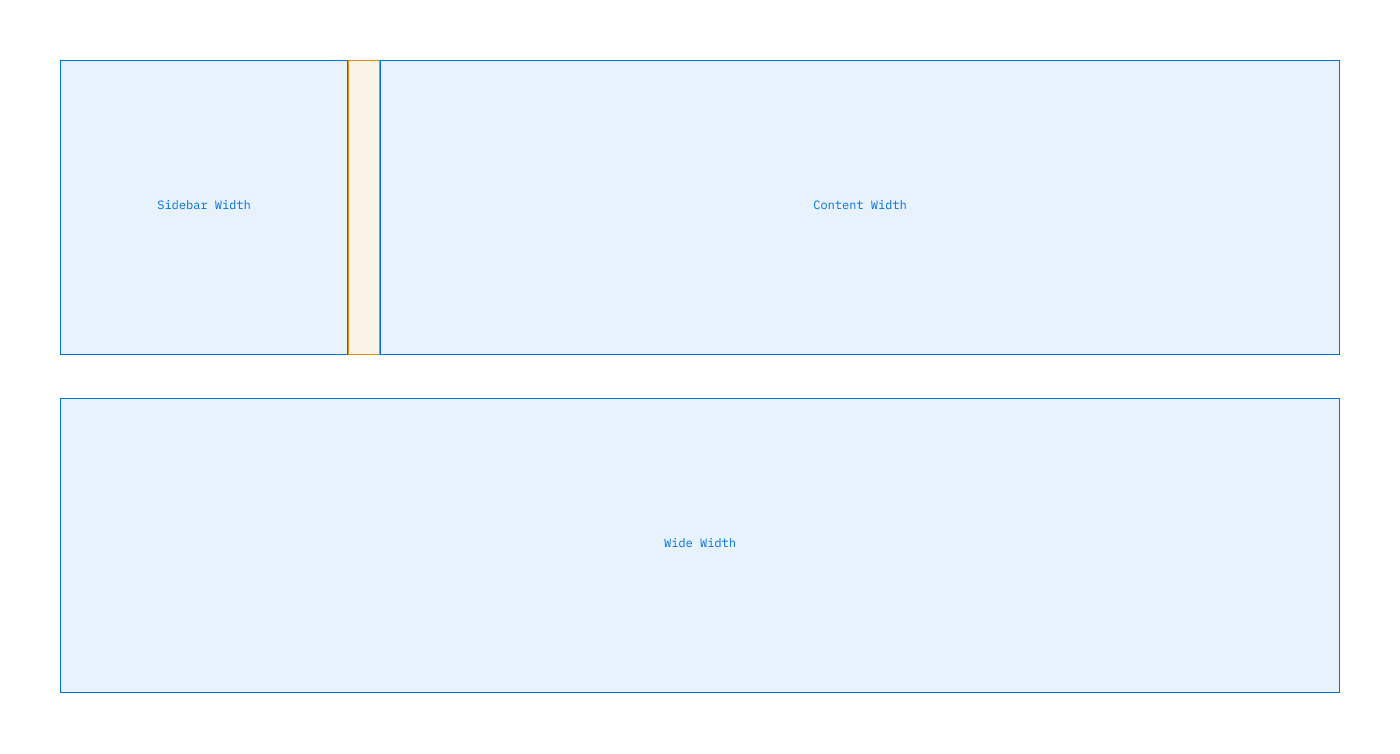

The layout system is divided into two widths sidebar and content. A third width called wide exists that equals the combined width of sidebar and content plus the gap between them (--ua_space--gap).

Width	rem	px
Sidebar	18rem	288px
Content	58rem	928px
Wide	77rem	1232px

Layout tokens

css

:root {
  --ua_layout-width--content: 58rem;
  --ua_layout-width--sidebar: 18rem;
  --ua_layout-width--wide: calc(var(--ua_layout-width--content, 58rem) + var(--ua_layout-width--sidebar, 18rem) + var(--ua_space--gutter, 1rem));
}

Spacing

Spacing values help to create consistent interfaces by clearly defining relationships between components.

Spacing values are static and don't change based on platform scale. Different spacing values can be used for different sizes and scales as needed.

Space Tokens

css

:root {
  --ua_space--05: 0.25rem;
  --ua_space--1: 0.5rem;
  --ua_space--2: 1rem;
  --ua_space--4: 2rem;
  --ua_space--8: 4rem;
  --ua_space--16: 8rem;
}

Semantic Spacing

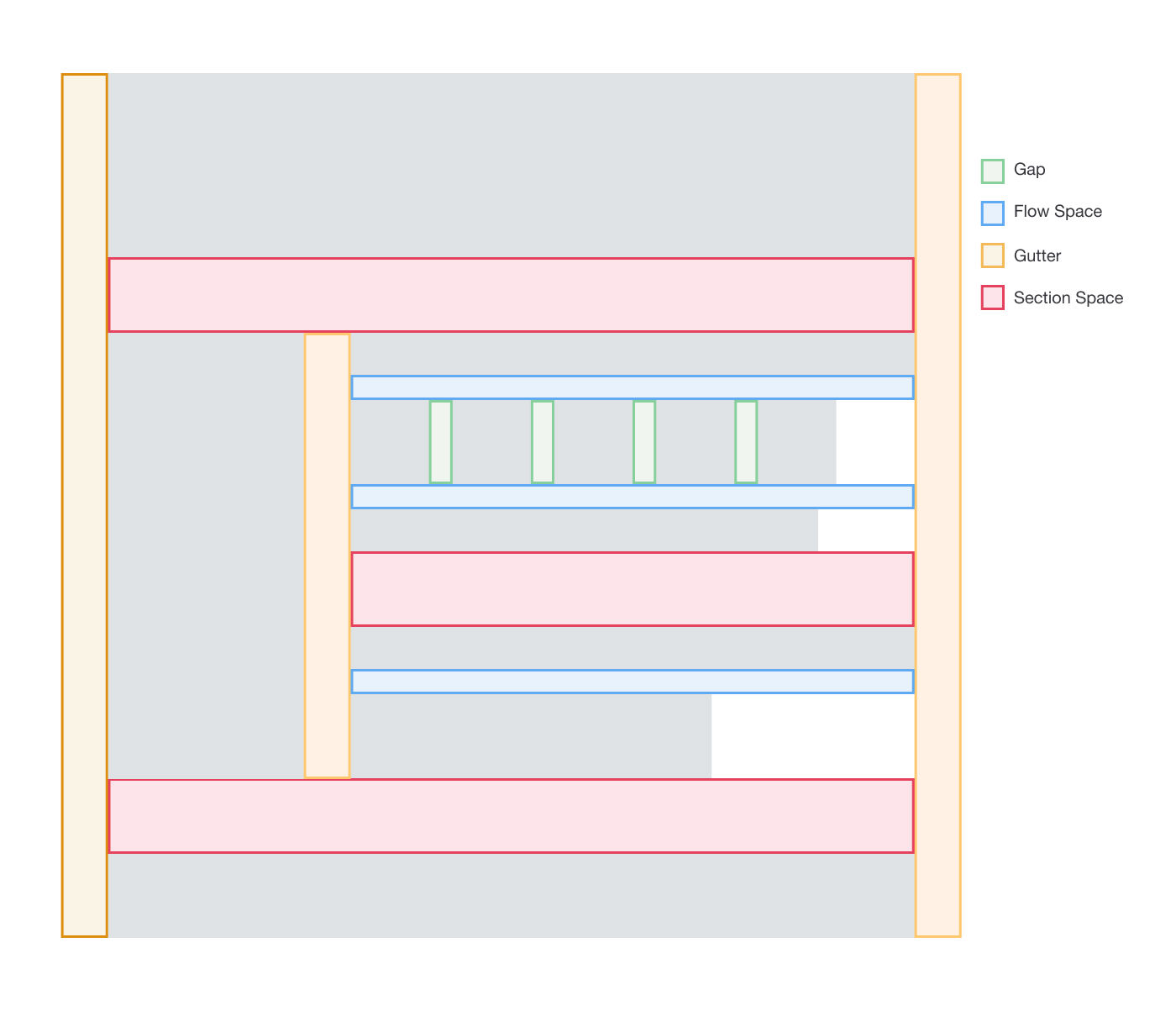

In addition to the space tokens, there are a few semantic spacing options available. These are meant to create harmonious spacing between elements.

css

:root {
  --ua_space--block-padding: 2rem;
  --ua_space--inline-padding: 0.1em 0.3em;
  --ua_space--inline-block-padding: 0.25em 0.75em;
  --ua_space--flow: 2rem;
  --ua_space--section: 4rem;
  --ua_space--gutter: 1rem;
  --ua_space--grid-gap: 2rem;
  --ua_space--flex-gap: 1rem;
  --ua_space--flow-half: calc(var(--ua_space--flow, 2rem) / 2);
  --ua_space--flow-double: calc(var(--ua_space--flow, 2rem) * 2);
}

@media (min-width: 77rem) {
  :root {
    --ua_space--section: var(--ua_space--16, 8rem);
  }
}

Flow Spacing

Flow spacing is a special type of space applied to the top margin of each consecutive child within a flow layout.

You can see an example of the flow spacing implementation here

css

.ua_layout--flow > * + * {
  margin: 0;
  margin-block-start: var(--ua_space--flow, 2rem);
}

It is important to note that in the design system, we rarely ever apply bottom margins in regular content areas.
